Submersible Pump

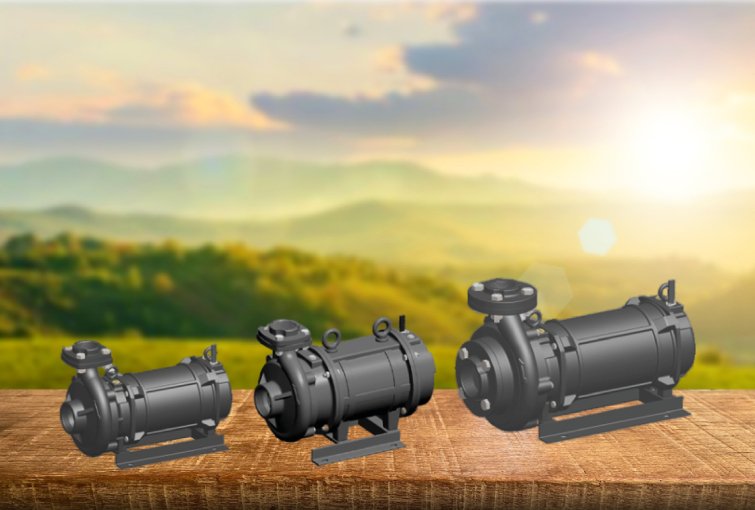

Open Well Submersible Pump
Overview
Openwell submersible pumps are directly installed into open wells and operate underwater to provide noiseless and efficient water delivery. They are suitable for areas with fluctuating water levels and are widely used in both residential and agricultural settings.
Use Cases :
- Domestic water lifting from open wells
- Garden and lawn irrigation
- Farm field water supply
- Community water supply in rural areas
Technical Specifications
| Parameter | Specification |
|---|---|
| Power Range | 0.5 HP – 5 HP (Single Phase) |
| 0.5 HP – 10 HP (Three Phase) | |
| Voltage | 220V / 415V |
| Motor Type | Water-cooled, Copper wound |
| Material | Cast Iron / SS |
| Discharge Range | Up to 600 LPM |
| Head Range | Up to 60 meters |
| Installation | Horizontal |
